Sensor Part

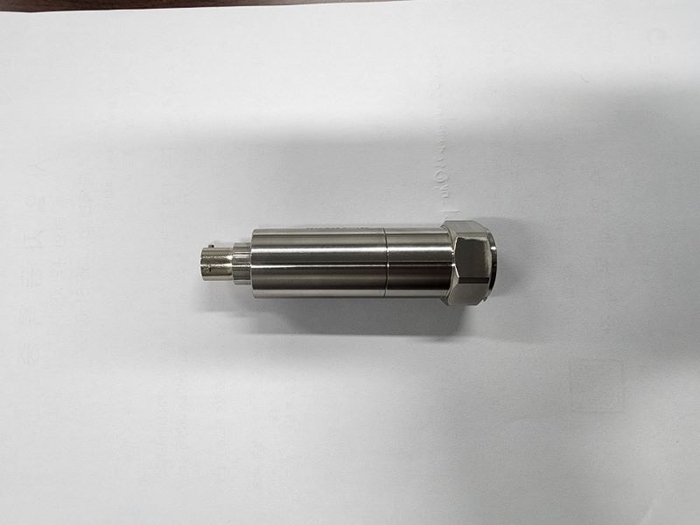

Pressure sensor(WTPS) Details
Name: Admin Count: 327
FEATURES
- High corrosion resistance and drip-proof construction Pressure port attachment made of SUS 316L Proven IP65 grade gauge body (IP-65 in accordance with IEC)
- Cable connector connection
- Buit-in temperature compensation function (0 ~ 50°C)
- Absolute pressure type and compound pressure type which can control negative to positive pressure with only a single pressure gauge are all in line
- Current output mode

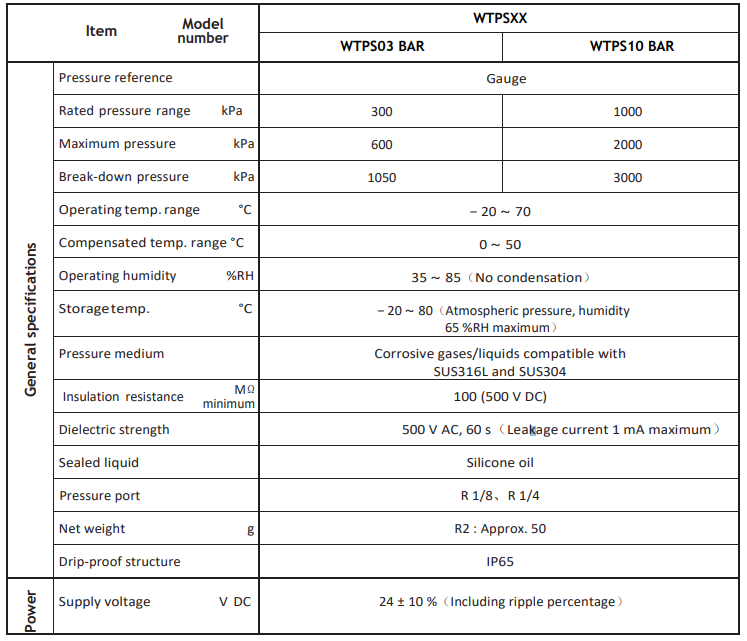

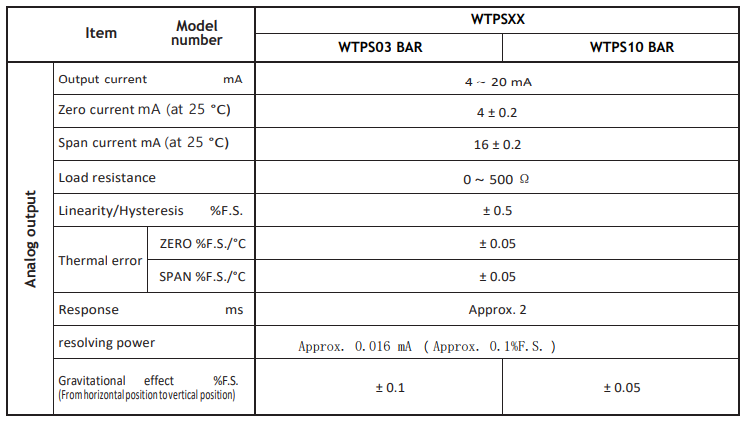

STANDARD SPECIFICATIONS
- Unless otherwise specified,the specs are defined at an ambienttemperature of 25 ± 5 °C and excitation voltage of 24 V DC, load resistance of 250 Ω .

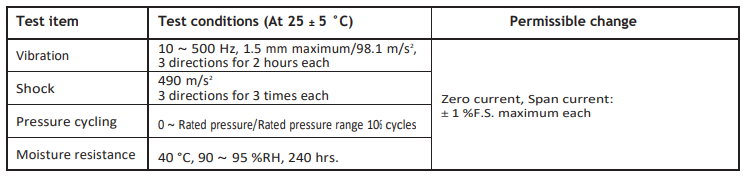

ENVIRONMENTAL
CHARACTERISTICS

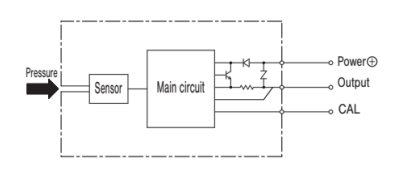

INTERNAL
ELECTRICAL
SCHEMATICS

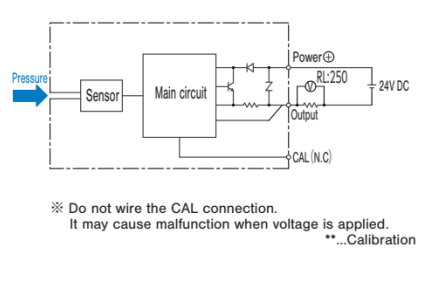

RECOMMENDED
EXTERNAL
SCHEMATICS
