Synchro Signal
Digital to Synchro, Resolver, LVDT - RVDT Converters: Details
Name: Admin Count: 885
FEATURES

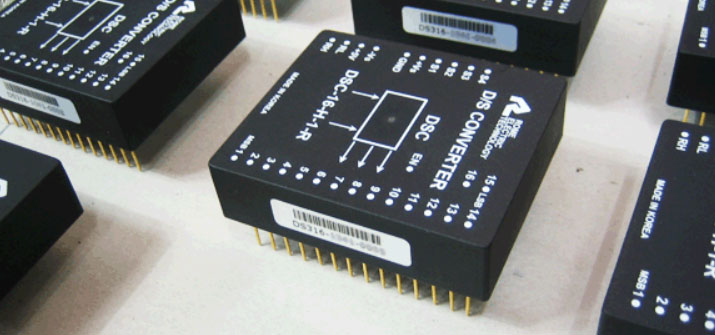

- Digital to Synchro Converters (DSC Series)
- Digital to Synchro Converters (DSC Series)
- Digital to Sine Cosine Converters and Vector Generators
- Digital to LVDT - RVDT Converters
- Option: Dynamic Rotate Feature (Programmable Velocity - Speed),
also available with Programmable Acceleration. - Option: Snaptrack Converter Option, Backplane mount with Terminal Blocks
APPLICATION
- Radar Tracking System
- Radar Tracking System
- Fire Control Systems
- Motor Control
SPECIFICATIONS
| Resolution | |
|---|---|
| DSC-14 | 14bit(0.022˚) |
| DSC-16 | 16bit(0.0055˚) |
| Accuracy | |
| DSC-14 | ±4 arc-min ±1LSB |
| DSC-16 | ±4 arc-min ±1LSB |
| Analog Output | |
| 11.8/90Vrms. L-L, 47 to 440 Hz. capable of driving 1.5VA | |
| Output Scale Factor Absolute | ±2% max. |
| Variation with Digital Angle | ±0.1% max. |
| Output Quadrature | ±0.3% max. |
| Digital Input | |
| Logic Format | Parallel binary angle TTL compatible positive logic |
| Logic Type | Transient protected CMOS |
| Loading | 0.13 standard TTL loads |
| EN(Latch) Function | NC or High : Output, Low : Latch |
| EN(Latch) Timming | Min. 120ns |
| EN(Latch) Internal Pull-Up | 33㏀ |
| Reference Input : Transformer Isolated | |
| Type | Solid state differential |
| Isolation | 0.4㏁ to GND. |
| Voltage | 26V or 115Vrms ±10% |
| Frequency | 60Hz or 400Hz ±10% |
| Input Impedance | 115Vrms : 220㏀ 26Vrms : 50㏀ |
| Power Supply Input(Operating) | |
| ±15VDC(±18VDC max.) | @ 150mA Average, No Load @ 330mA Average, Normal Load |
| +5VDC(7V max.) | @ 30mA max. |
| Temperature Ranges | |
| Operating | - Industrial : ( -40℃ to + 85℃ ) - Military : ( -55℃ to + 105℃ ) |
| Storage | -55℃ to + 125℃ |
